Copper clad steel earthing wire/strand
Copper clad steel earthing wire and strand is mainly used in power, communication, rail transit, post and telecommunication areas as static electricity protection earthing and lightning protection grounding.
Copper clad steel earthing wire
|
SIZE |
DIAMETER (MM) |
LENGTH(M) |
|
DL-04 |
4 |
Produce as per request |
|
DL-06 |
6 |
Produce as per request |
|
DL-08 |
8 |
Produce as per request |
|
DL-10 |
10 |
Produce as per request |
|
DL-12 |
12 |
1-6, 8, 9 |
|
DL-14 |
14 |
1-6, 8, 9 |
|
DL-16 |
16 |
1-6, 8, 9 |
|
DL-18 |
18 |
1-6, 8, 9 |
|
DL-20 |
20 |
1-6, 8, 9 |
|
DL-22 |
22 |
1-6, 8, 9 |
|
DL-25 |
25 |
1-6, 8, 9 |

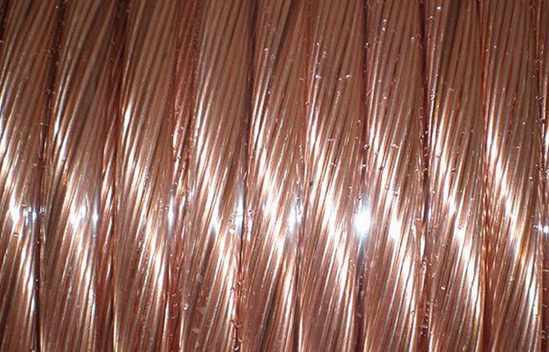

Copper clad steel earthing strand
|
SIZE |
CROSS SECTION AREA(MM2) |
DIAMETER OF WIRE(MM) |
WIRE QUANTITY |
OUTER DIAMETER(MM) |
|
6C |
16 |
1.70 |
7 |
5.10 |
|
25C |
25 |
2.15 |
7 |
6.50 |
|
35C |
35 |
2.52 |
7 |
7.60 |
|
50C |
50 |
3.00 |
7 |
9.00 |
|
70C |
70 |
3.52 |
7 |
11.00 |
|
95C |
95 |
2.52 |
19 |
12.60 |
|
120c |
120 |
2.80 |
19 |
14.00 |
|
150c |
150 |
3.20 |
19 |
16.00 |
|
185C |
185 |
3.52 |
19 |
17.60 |
|
200c |
200 |
3.66 |
19 |
18.35 |
|
240C |
240 |
4.00 |
19 |
20.00 |
|
300c |
300 |
3.70 |
37 |
22.40 |
|
400c |
400 |
3.70 |
37 |
25.90 |
Thickness of copper clad:≥ 0.25mm
Tensile strength: ≥ 600N/mm
